520nm 1000mw TTL Modulation Green DPSS Laser Kit

Name: 520nm 1000mw TTL Modulation Green DPSS Laser Kit
Brand: Xinland
Price: 1 USD

Brand Name : Xinland

Model Number : XL520SD-1000

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : Negotiated

Payment Terms : MoneyGram, Western Union, T/T, D/P, D/A, L/C

Supply Ability : 100pcs per month

Packaging Details : 1pc/inner box ,4pcs/carton

Operation Mode : CW or Modulation

Modulation : Analog or TTL modulation 0~30Khz

Laser Wavelength : 532nm

Laser Power : 1000mw

Power Stability : <±5% per 2 hrs

Beam Diameter(1/e2) : <3mm

Contact Now

520nm 1000mw TTL Modulation Adjustable Green DPSS Laser Kit with Digital Power Supply

Application:

It is wildly used in fields of Medical, laser demonstating,isotope separation,high density optical storage, Precision material processing,photoetching, spectrum analysis and so on.

Key Features:

High power and high stability
Good beam shape Long lifetime
Low cost and easy operating

Specifications:

Model No.	XL520SD-1000
Wavelength	520+/-5 nm
Spatial Mode	Near TEM00
Output Power	1000mW
Operation Mode	CW or Modulation
Beam Height	29mm
Beam Size	4.5x4mm
Beam Divergence(full angle)	1.2x0.5mrad
Power Stability	<3% per 4 hrs
Temperature Stabilizing	TEC
Warm Up Time	<1 minute
MTTF	10,000 hr
Laser head dimensions	114(L)x44(W)x65(H)mm3
Power Supply	A. OEM type XL-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input
	B. Lab type XL-PS-IIS: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input
	C. Lab Adjustable type XL-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input
Modulation	0~30khz Analog or TTL

Our Services:

Warranty:we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method: DHL/FEDEX/UPS/EMS/TNT Express service; Post Servic

Product Tags:

Diode Pumped Solid State Laser

TTL Modulation Green DPSS Laser Kit

520nm 1000mw DPSS Laser Kit

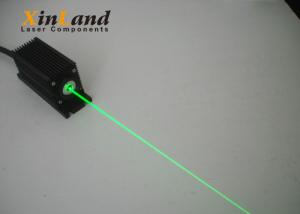

520nm 1000mw TTL Modulation Green DPSS Laser Kit Images
